MagSafe is a series of proprietary magnetically attached power connectors, originally introduced by Apple Inc. on January 10, 2006, in conjunction with the MacBook Pro at the Macworld Expo in San Francisco, California, United States. The connector is held in place magnetically so that if it is tugged — for example, by someone tripping over the cord — it will pull out of the socket without damaging the connector or the computer power socket, and without pulling the computer off the surface on which it is located.[1] Despite its popularity amongst many users, it has been discontinued across all product lines on July 9, 2019 and replaced with USB-C, causing backlash with many users and tech reviewers.

History

The basic concept of MagSafe is derived from the magnetic power connectors that are part of many deep fryers and Japanese countertop cooking appliances since the early 2000s in order to avoid spilling their dangerously hot contents.[2][3][4] Apple was granted U.S. patent number 7311526 on December 25, 2007 for a "Magnetic connector for electronic device" as MagSafe was deemed to be a sufficient improvement due to the connector being symmetrical and reversible, and the fact that magnets within a connector are arranged in opposing polarities for improved coupling strength.[5]

Apple phased out MagSafe with the release of the Retina MacBook and 2016 MacBook Pro that replaced it with USB-C for charging and data sync.[6][7] The last product with MagSafe, the 2017 MacBook Air, was discontinued on July 9, 2019.[8]

Features

MagSafe (original)

Apple_Get_a_Mac_ad_-_Accident

Apple Get a Mac ad - Accident

Television commercial for MagSafe.

The original MagSafe has connector pins that are designed so the rectangular connector can be inserted in either orientation (however, the L-shaped version of the connector can only be fitted in one orientation without blocking neighboring ports, such as USB). LEDs on both the top and bottom of the connector show green if the computer battery is fully charged and amber or red if the battery is charging. MagSafe can be found on the MacBook, MacBook Pro and MacBook Air notebook computers, as well as the Apple LED Cinema Display and Thunderbolt Display.[9]

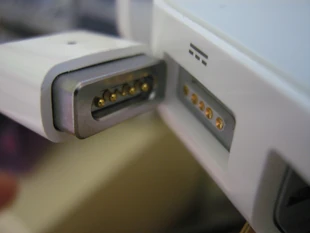

MagSafe port on a MacBook Pro.

The MacBook and the 13-inch MacBook Pro use a 60 W MagSafe charger, whereas the 15- and 17-inch MacBook Pro use an 85 W MagSafe charger. The MacBook Air has a lower-powered 45 W version of the MagSafe adapter. The power brick is smaller, but the MagSafe connector is the same as on the 60 W and 85 W chargers. According to Apple, an adapter with a higher wattage than that originally provided may be used without problems.[10]

Apple formerly offered a "MagSafe Airline Adapter" for use on certain compatible airplanes. It had a DC input (instead of AC like the original MagSafe chargers) and would power the computer, but would not charge the battery.[11]

MagSafe 2

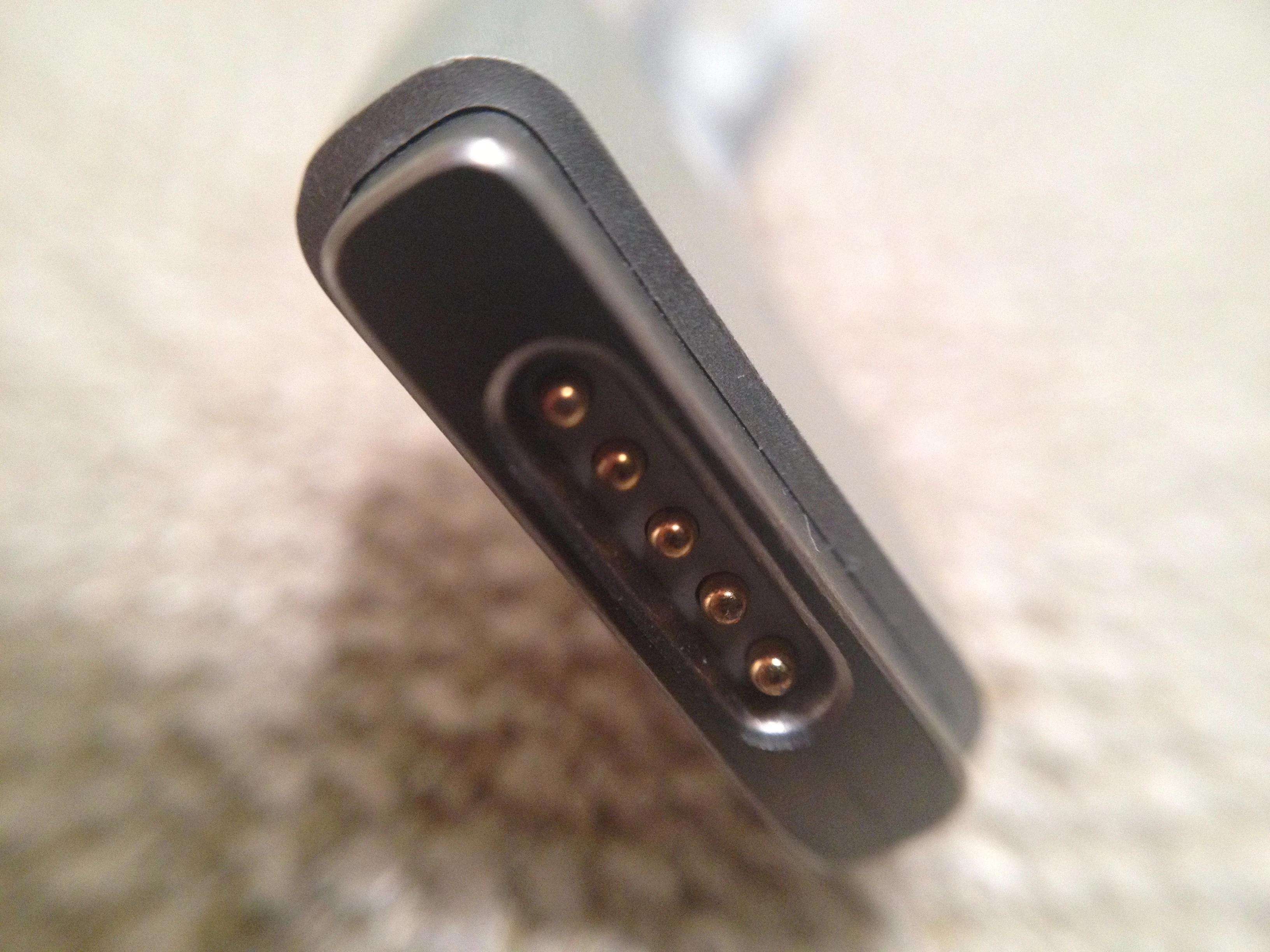

MagSafe 2 was introduced on the MacBook Air and MacBook Pro with Retina Display at the 2012 Worldwide Developers Conference on June 11, 2012. It is incompatible with the older MagSafe connectors without an adapter, and returns to the T-shaped design that points straight out, rather than the L-shape that runs along the side of the machine. The connector was made thinner and wider to fit the thinner laptops.[12]

MagSafe 3

MagSafe 3 was re-introduced in a special event on October 18, 2021 after being absent from MacBook Pro models released in 2016 to 2020. The new MagSafe 3 port supports fast charging on the 14 and 16-inch MacBook Pros with Apple M1 Pro or M1 Max processors, if connected through a USB-C to MagSafe 3 Cable to a 67W, 96W, or 140W USB-C Power Adapter. MagSafe 3 is thinner and wider than MagSafe 2 and is not believed to be backwards compatible.[13] USB-C charging is also still supported on these MacBook Pro models through their Thunderbolt 4 ports.[14][15]

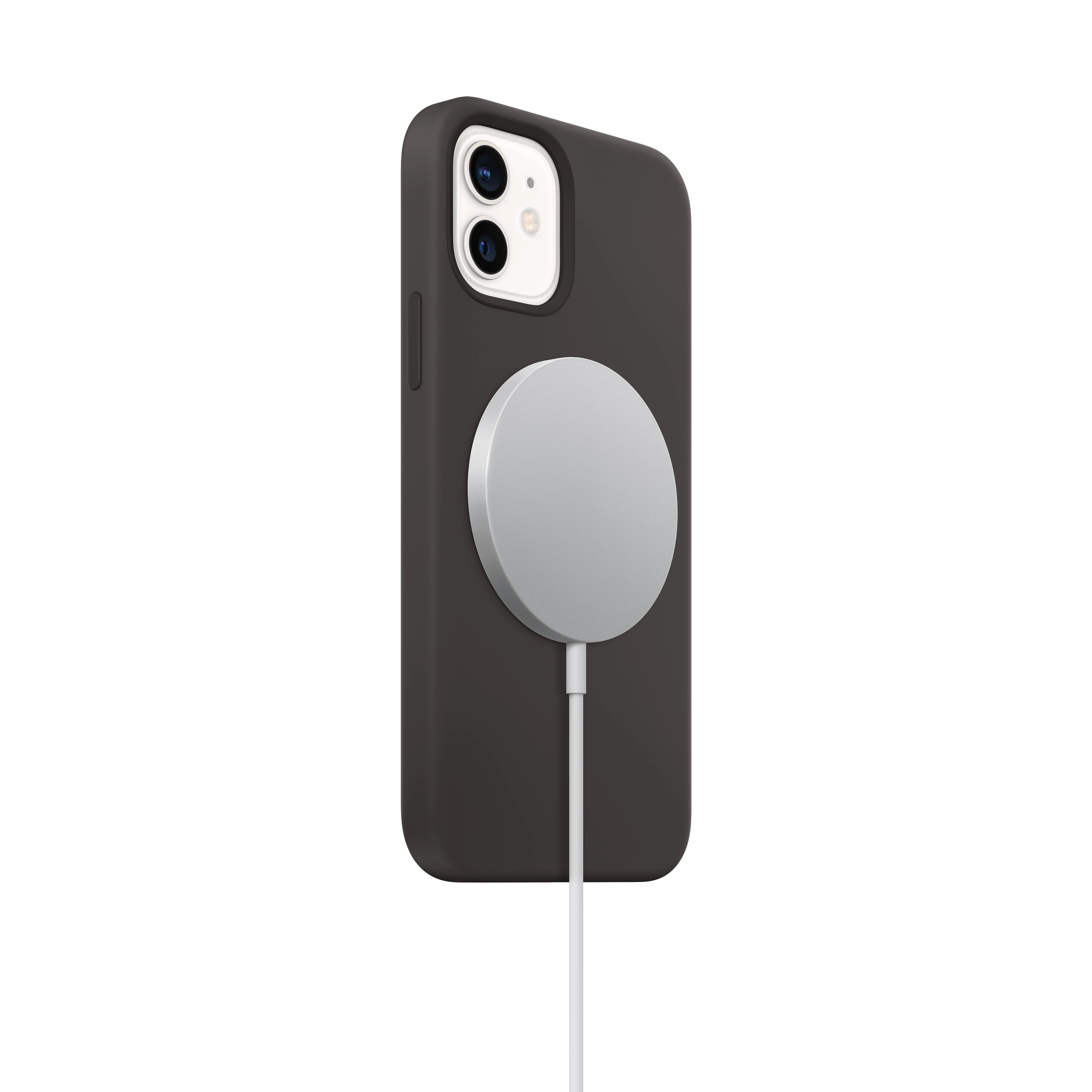

A MagSafe Charger magnetically attached to an iPhone 12.

MagSafe (wireless)

Apple introduced the wireless MagSafe Charger in October 2020 with the iPhone 12 series. It uses a magnetic coil to self-align with and charge compatible devices, but contains no physical connectors from previous MagSafe versions.[16] In January 2021, Apple published an advisory that users of iPhones with MagSafe should keep such devices away from medical implants such as pacemakers to avoid potential magnetic interference.[17]

Apple released the MagSafe Duo Charger, a foldable version that can simultaneously charge a supported iPhone and Apple Watch, on December 1, 2020.[18] On July 13, 2021, Apple released the MagSafe Battery Pack, which itself can charge or be charged by a supported iPhone, but cannot be used simultaneously with the MagSafe Charger.[19]

Pinouts

The MagSafe connector pins allow for the adapter to be inserted in either orientation. The first and second pins on each side of the tiny central pin have continuity with their mirror pins.

  • The inner large pins are V+ (14.5 / 16.5 / 18.5 / 20 V DC). Measuring with no load will give 6.86 V DC for MagSafe and about 3 V DC for MagSafe 2; the full voltage is provided after a ~40 kOhm load is applied for one second.[20]
  • The outer large pins are ground.
  • The tiny center pin is a data pin using the 1-Wire protocol. The computer uses this pin to change the LED’s color and retrieve the serial number and wattage of the power supply.[20]
  • Only two wires – power and ground – go to the charger unit. There is no data communication via the adapter sense pin with the charger unit itself.[20]
  • The maximum voltage supplied is as follows:
    • 14.5 V DC for the 45 W units supplied with MacBook Air
    • 16.5 V DC for the 60 W units supplied with MacBook and 13" MacBook Pro
    • 18.5 V DC for the 85 W units supplied with 15" and 17" MacBook Pro
    • 20 V DC for the 85 W units supplied with 15" MacBook Pro Retina

The rectangular metal shroud surrounding the pins acts as shielding for the electrical pins and a ferrous attractor for the magnet in the laptop.

Third-party products

Although Apple does not license the MagSafe connector for use in third-party products, manufacturers have devised a workaround: their MagSafe items use the actual connector from Apple's AC adapter, grafted onto their own product. Since this uses an actual Apple product, purchased legally, manufacturers believe that no licensing agreements are needed (a principle referred to as the first sale doctrine) and the patents are not violated.[21] However, in 2010 Apple still sued one such manufacturer, Sanho Corporation for selling its very popular HyperMac battery extension products which Apple claimed violated their patents.[22] Sanho has since ceased to sell their connector cable for the HyperMac series of external batteries.[23]

Some fake MagSafe 2 chargers have appeared on sites such as Amazon. These chargers are often unsafe, have spelling mistakes on the charger itself, and/or have inconsistencies that the official product does not contain, e.g. the LEDs on the connector do not follow the correct colour code, or the charger is referred to as a MagSafe 1 charger rather than the second generation charger.

Defects

As of October 2011, many users had reported problems with the quality of the construction of the MagSafe cords, giving the product low marks on the Apple Store's website.[24] Common complaints included plug separating from the cord, transformer shorting, and pin springs losing elasticity.[24]

Several methods have been devised to protect the MagSafe from failure, including wrapping the cable with tape or sliding protective plastic around the cable.[25]

In 2008, Apple posted an official response acknowledging problems with MagSafe adapters, which include incomplete circuit connection and adapter's white insulation separating from the magnetic end of the MagSafe connector.[26] Following the release of a Knowledge Base article, a class-action lawsuit was filed on May 1, 2009, in the United States District Court for the Northern District of California|US District Court for the Northern District of California's San Jose office, alleging that the MagSafe power adapter is prone to frayed wires and overheating, and as such represents a fire hazard.[27]

Apple released a firmware update in October 2010 that it claims resolves this issue.[28] However, the installer for the firmware update will not run on certain older MacBooks, which means that the firmware can not be updated. This, in turn, means that it is not possible to use the new MagSafe power adapter with these MacBooks. However, as of 2017, Apple still sells the older MagSafe power adapter.[29]

In 2011, Apple posted a support document about the strain-relief problems with the MPM-1 ("T")-style MagSafe power cables, and issued settlement offer for buyers of Apple 60 W or 85 W MagSafe MPM-1 adapter within the first three years of purchase.[30]

Earlier power systems

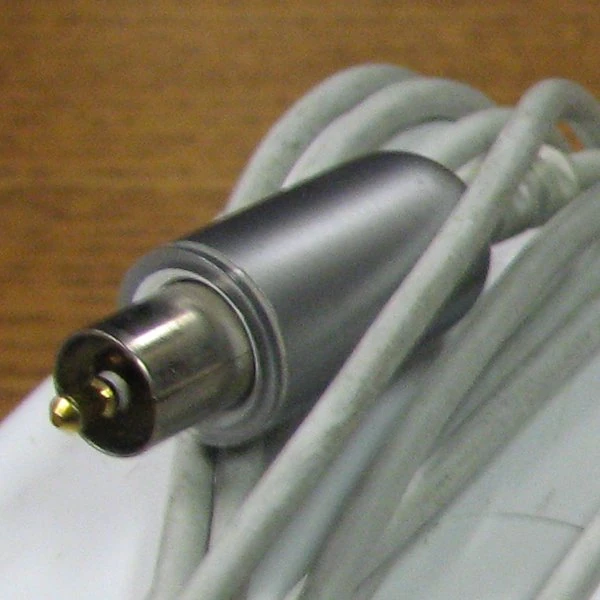

Apple iBook Brick Charger Plug.jpg

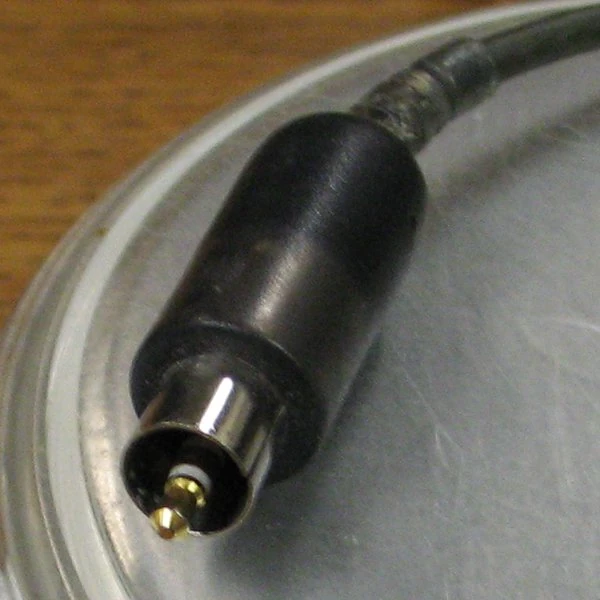

Apple iBook Puck Charger Plug.jpg
Closeup view of the brick plug on the left, and the puck plug on the right, with tip ring sleeve plugs and a metal ring around the plug. The puck charger simply had a dark gray shroud, while the brick added the clear plastic charge indicator ring.

Before MagSafe, Apple laptop computers used a shell and socket/pin arrangement, or coaxial power connector. The iBook series introduced a charger that resembled a mini-stereo plug with an additional metal ring. The first puck-shaped iBook chargers simply had a silver plug body, but the square white chargers introduced a color-changing illuminated ring that indicated charging status.

Tripping on an iBook cord or yanking the cord out at an angle could bend the spring contacts inside the connector or break the solder pads under the connector, resulting in a laptop that would fail to charge when connected to the cord, or would only charge if the inserted plug were propped up or pushed down at an angle. An especially forceful yank could flare the outer flange or even break the tip of the power plug.

Replacing a damaged "DC-In Board" in an early 12 inch G3 iBook typically involved an expensive 50-step disassembly of the laptop.[31]
